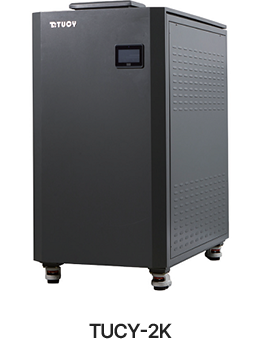

Solid Oxide Fuel Cell System TUCY-2K
| Capacity | 2kW (SOFC method) |
|---|---|
| Size | W 0.62m X D 1.23m XH 1.24m |
| Power Generation Efficiency | 52.9% (KS certification standard) |
| Overall Efficiency | 96.8% (KS certification standard) |
| Fuel | City gas 13A , low pressure 1.5~2.5KPa |
| Fuel Consumption | 0.35m3/h ±10% | 3.98 kW (3,422.52 kcal /h) @ HHV |
| Hot Water Emission | Rated 30L/h (0.03m3/h / 1420kcal/h) ±10% @65°C |
| Installation | Indoor type, FF stovepipe |
| Power Supply | Faucet: 220V single phase 2 wire 60 Hz | Power Generation: 220V single phase 2 wire 60 Hz |
| Certification / Pass Letter | KGS inspection passed, KS certification, NEP (new product), excellent products from the Public Procurement Service |

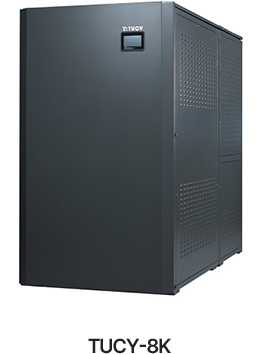

Solid Oxide Fuel Cell System TUCY-8K
| Capacity | 8kW (SOFC method) |
|---|---|
| Size | W 0.89m XD 1.83m XH 1.68m |
| Power Generation Efficiency | 51.4% (KS certification standard) |
| Overall Efficiency | 98.6% (KS certification standard) |
| Fuel | City gas 13A, low pressure 1.5~2.5KPa |
| Fuel Consumption | 1,485 m3/h 10% | 16.51 kW (14,196.1 kcal /h) @ HHV |
| Hot Water Emission | Rated 166.8 L/h (0.167m3/h / 6104.88kcal/h) ±10% @65°C |
| Installation | Indoor type, FF stovepipe |
| Power Supply | Faucet: 220V single phase 2 wire 60 Hz | Power Generation: 380V three phase 4 wire 60 Hz |
| Certification / Pass Letter | KGS inspection passed, KS certification |

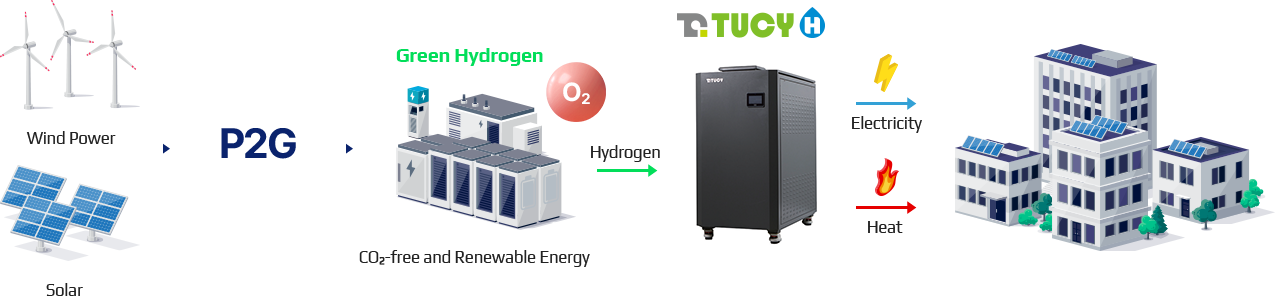

Direct hydrogen SOFC system(TUCY Hydrogen)
MiCoPower direct hydrogen SOFC system is a futuristic eco-friendly energy technology that converts power from renewable energy such as wind
and solar energy into hydrogen (green hydrogen) and produces no carbon.

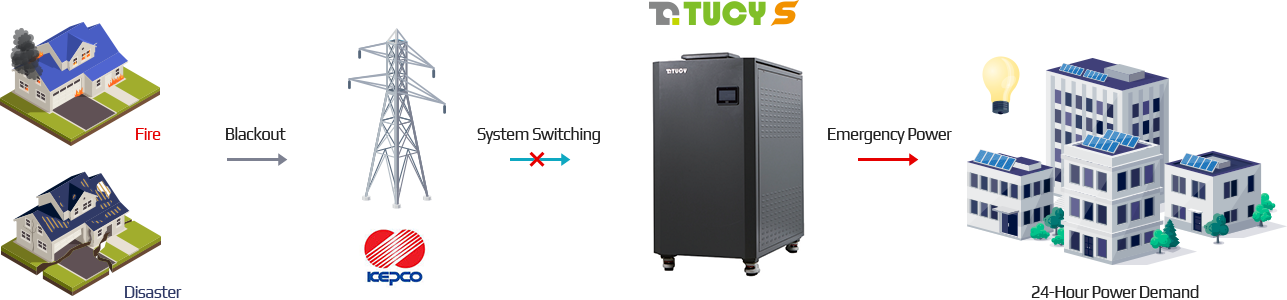

Emergency power SOFC system (TUCY Sustainable)
MiCoPower emergency power SOFC system supplies backup power through system switching in the event of a power outage and can serve as emergency power for the operation of fire facilities in fire and disaster situations.
